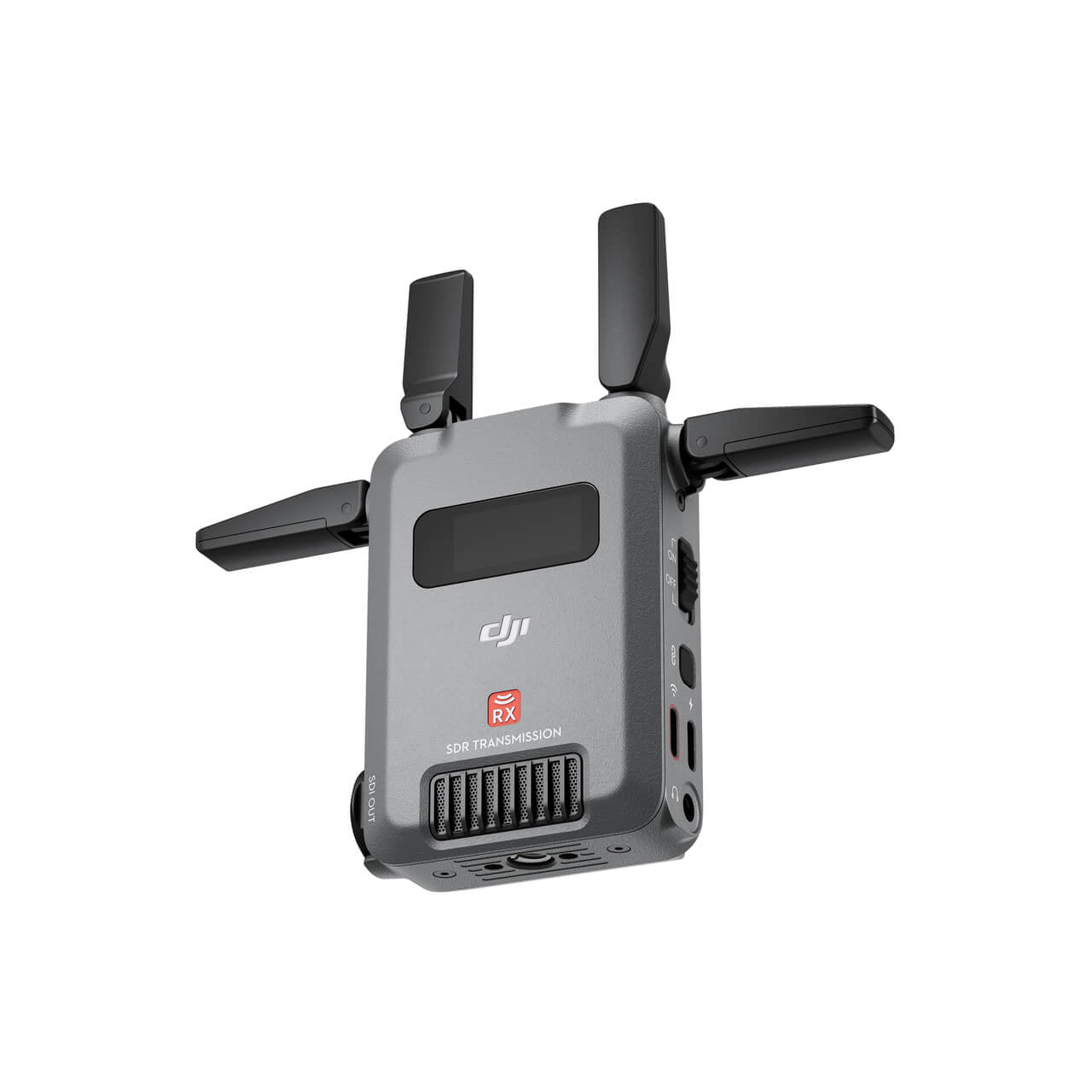

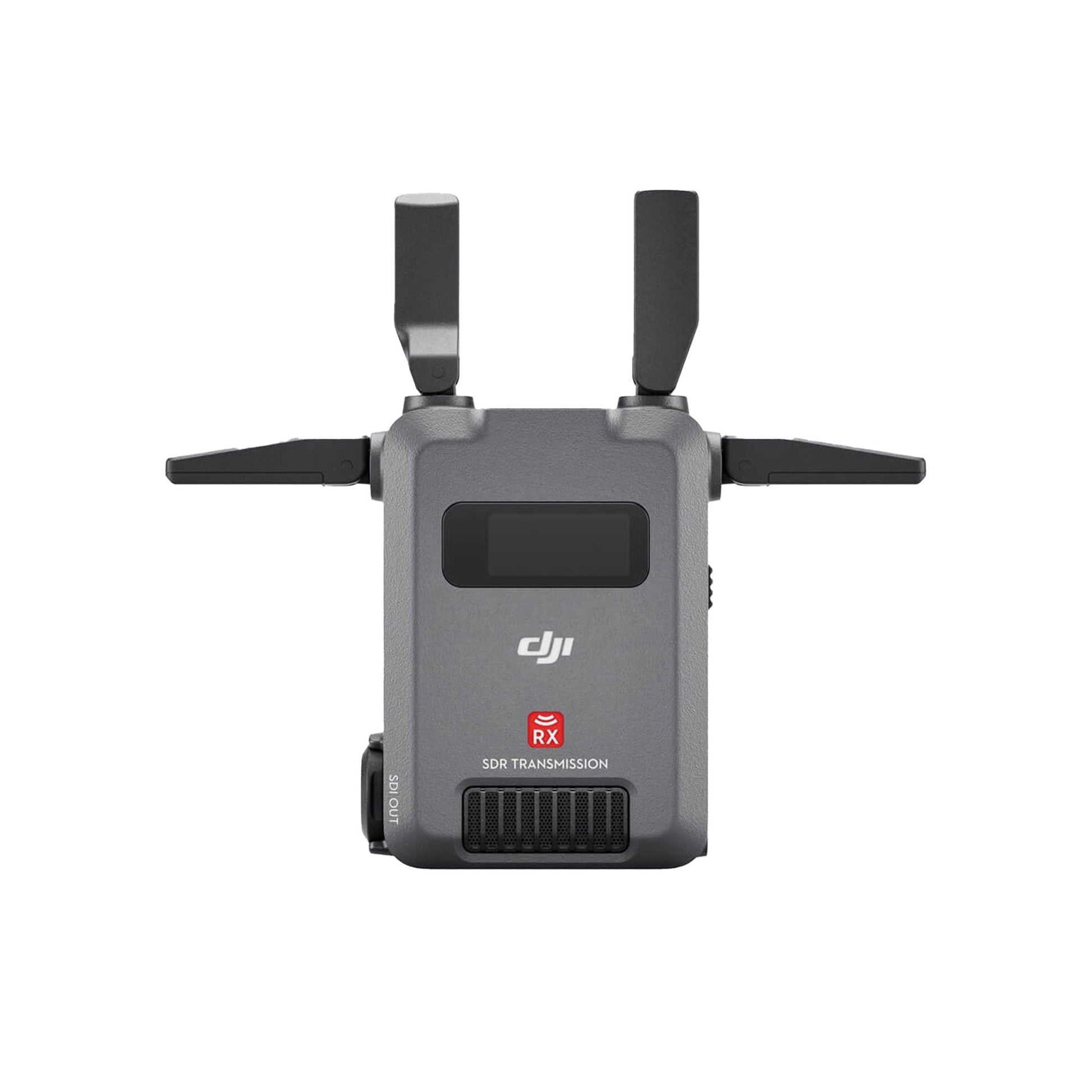

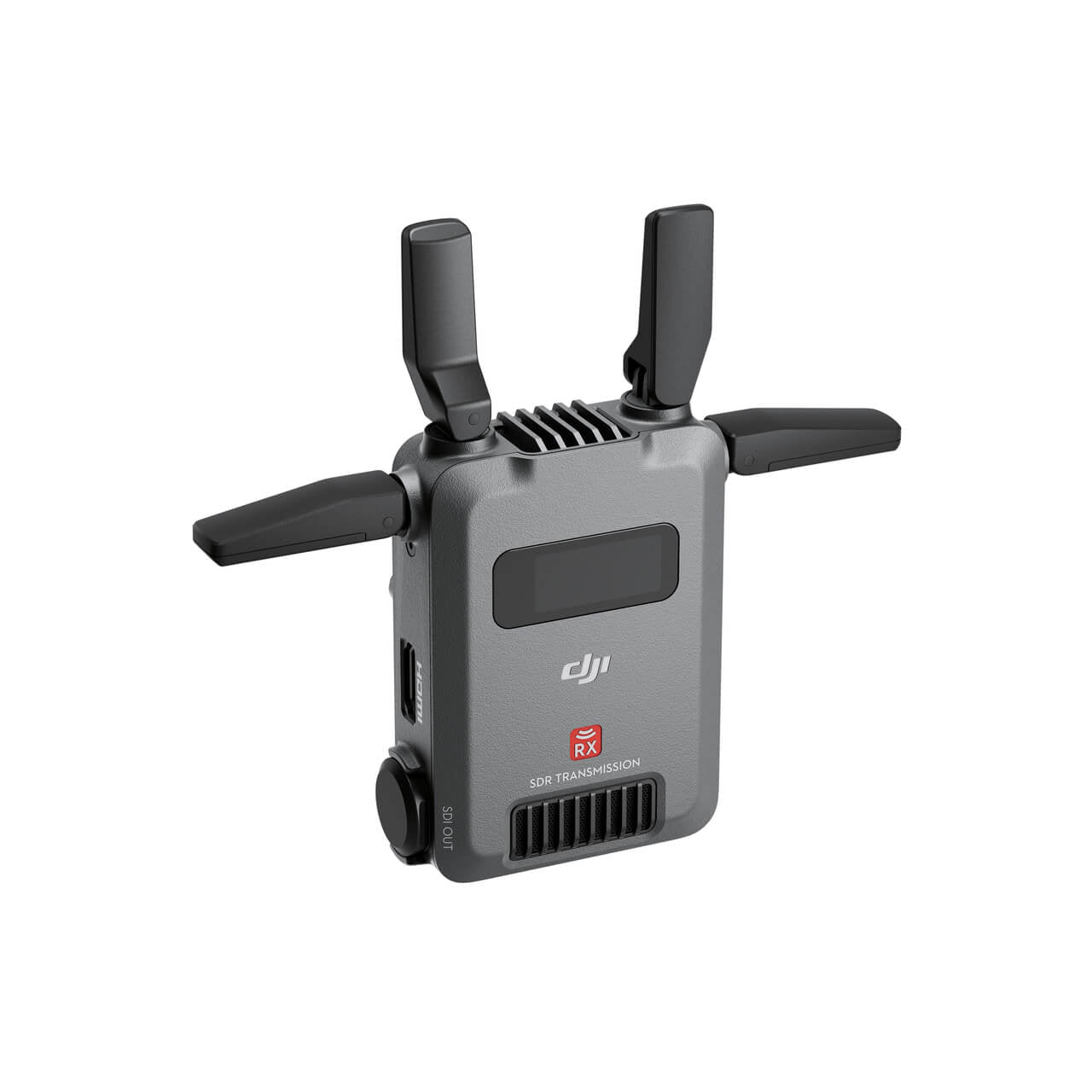

DJI SDR Transmission Receiver (RX)

The DJI SDR Transmission Receiver brings cutting-edge video monitoring with Software-Defined Radio (SDR) technology, ensuring exceptional stability, interference resistance, and high-definition video quality for professional use.

Main Features:

• Enhanced Stability & Anti-Interference
• Extended Distance & Strong Penetration
• High Bitrate & Image Quality
• Seamless Auto Frequency Hopping
• Unlimited Receivers In Broadcast Mode

High-Quality Video Monitoring

The DJI SDR Transmission Receiver ensures high-definition video reception with 1080p/60fps live feeds and up to 20 Mbps bitrate, providing clear and smooth monitoring for professional applications.

Seamless Auto Frequency Hopping

The receiver supports auto frequency hopping across 2.4 GHz, 5.8 GHz, and DFS bands, automatically switching to the optimal channel to maintain interference-free performance in complex environments.

Unlimited Receivers In Broadcast Mode

In Broadcast mode, the receiver can connect to unlimited transmitters, offering a high-quality monitoring experience for multiple collaborators.

Real-Time Voice Communication

The receiver facilitates one-on-one real-time communication with the transmitter, enabling seamless conversations between cinematographers and directors or clients.

Comprehensive Connectivity

USB-C Ports for firmware updates and video output. 3.5mm Stereo Jack supports voice calls. HDMI and SDI Output Ports deliver 1080p/60fps video and audio production for professional monitoring.

Versatile Power Supply

NP-F Batteries support standard NP-F batteries. USB-C Power Supply compatible with PD protocol chargers, rated at 9 V and 2 A, ensuring flexibility and convenience for power supply.
